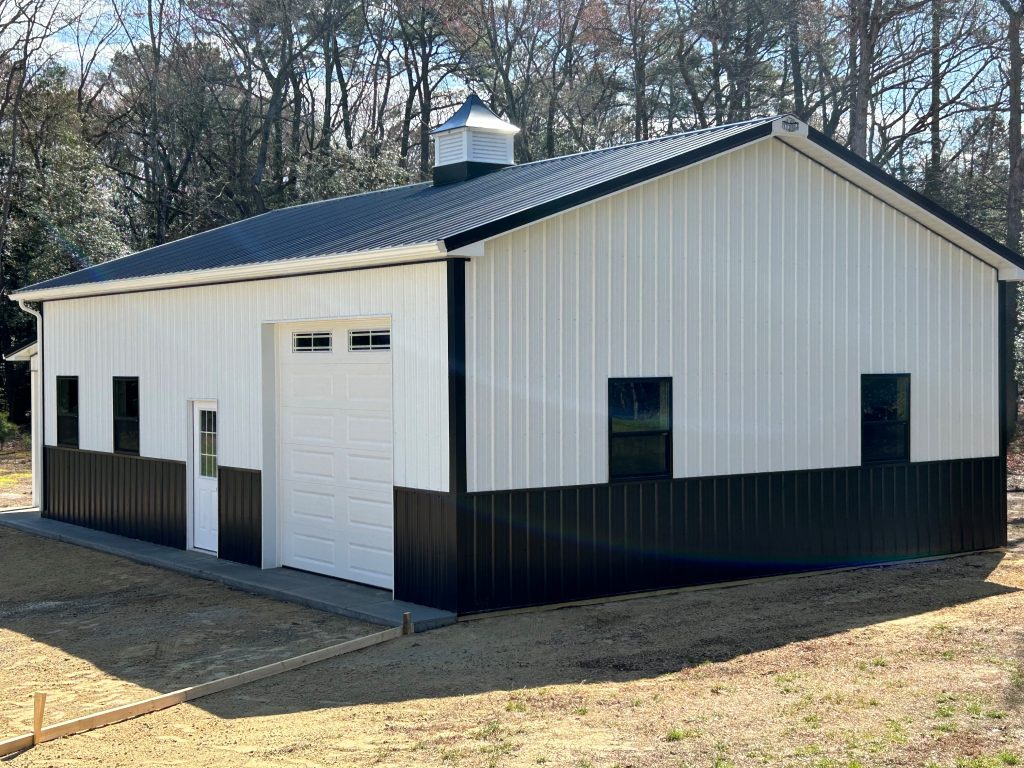

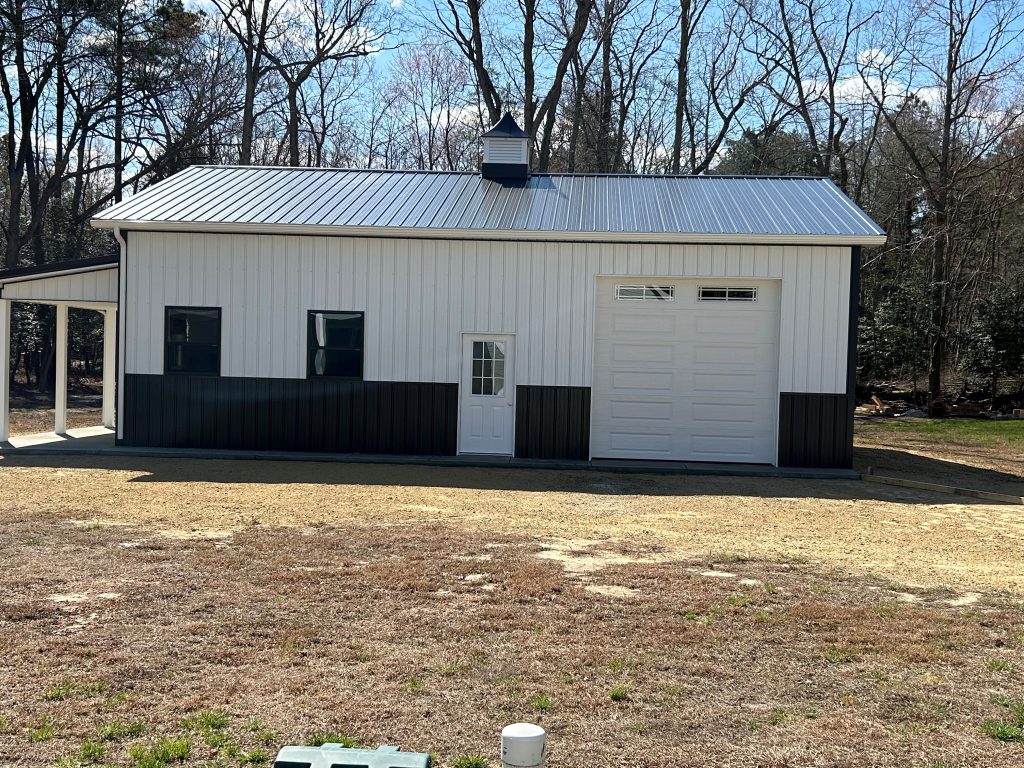

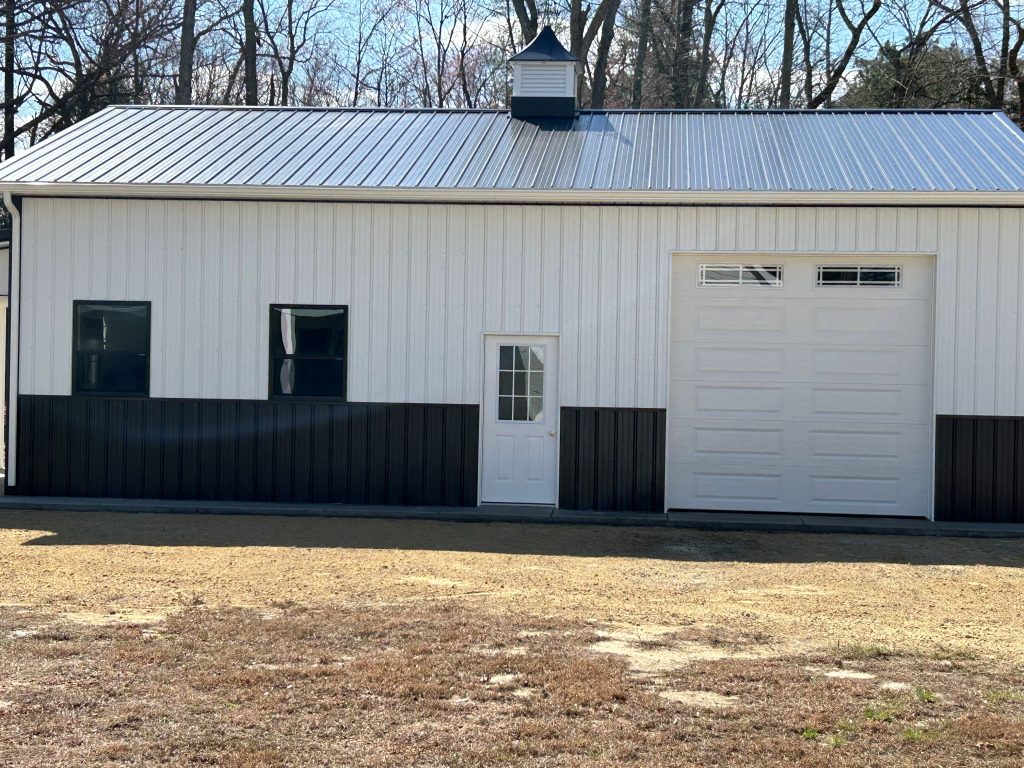

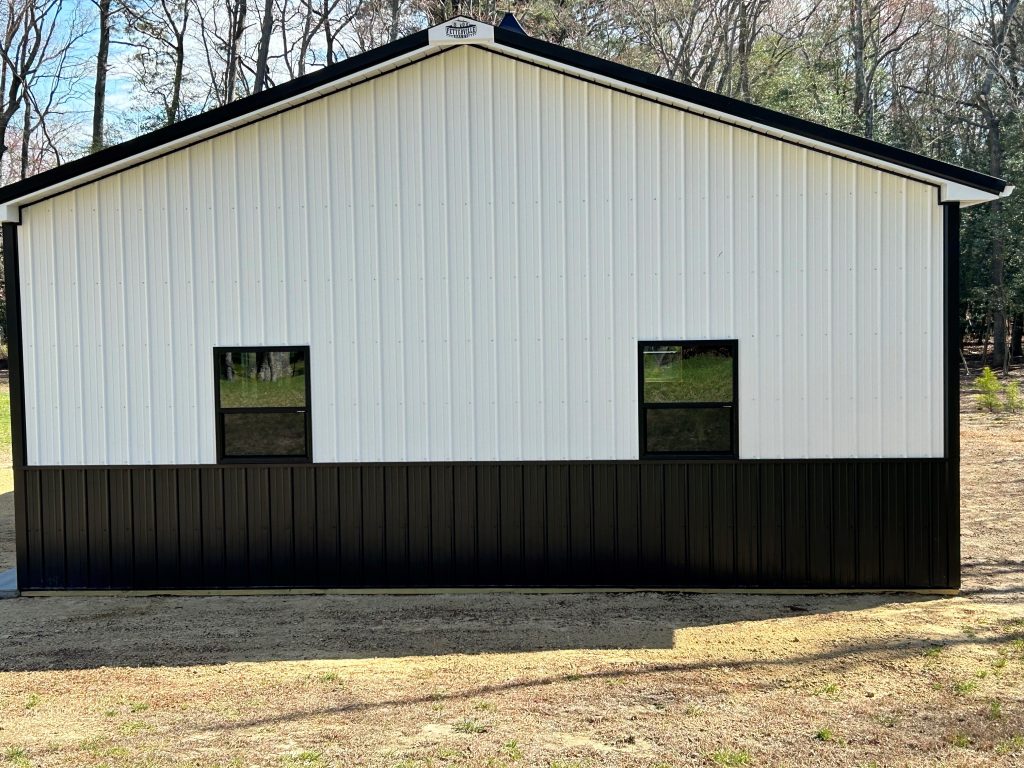

Georgetown, DE
Click on the above image to view it in its full size.
Building Specs:
30′ width x 40′ length x 12′ inside height
Roof System: 4′ o/c trusses Pitch: 4/12 Loading: 30-5-5 standard
Walls: 8′ o/c 3-Ply 2×6 Glulam Load-Bearing Posts
Siding: 28 Gauge Painted Steel (Brilliant White)
Trim Color (Black)
Siding: 4′ Wainscoting (Black)
Roofing Type: 27 Gauge Painted Steel with Ridge Vent (Black)
Overhangs: 12″ Boxed Vented on 2-eaves & 2-gables (Brilliant White) soffit and fascia
Insulation/Radiant Insulation Barrier
Liner Panel on Ceiling
1 – 10 X 10 Insulated Vinyl-Backed (White) Overhead Door(s) with 5 lites
2 – 3′ X 6’8″ Fiberglass 9-Lite Entry Doors
5 – 36″ x 44″ Single Hung Insulated w/ Half Screen Windows
1 – 3′ Cupola, Vented and a Standard Black weathervane
5K Seamless Gutter & 2 Downspouts

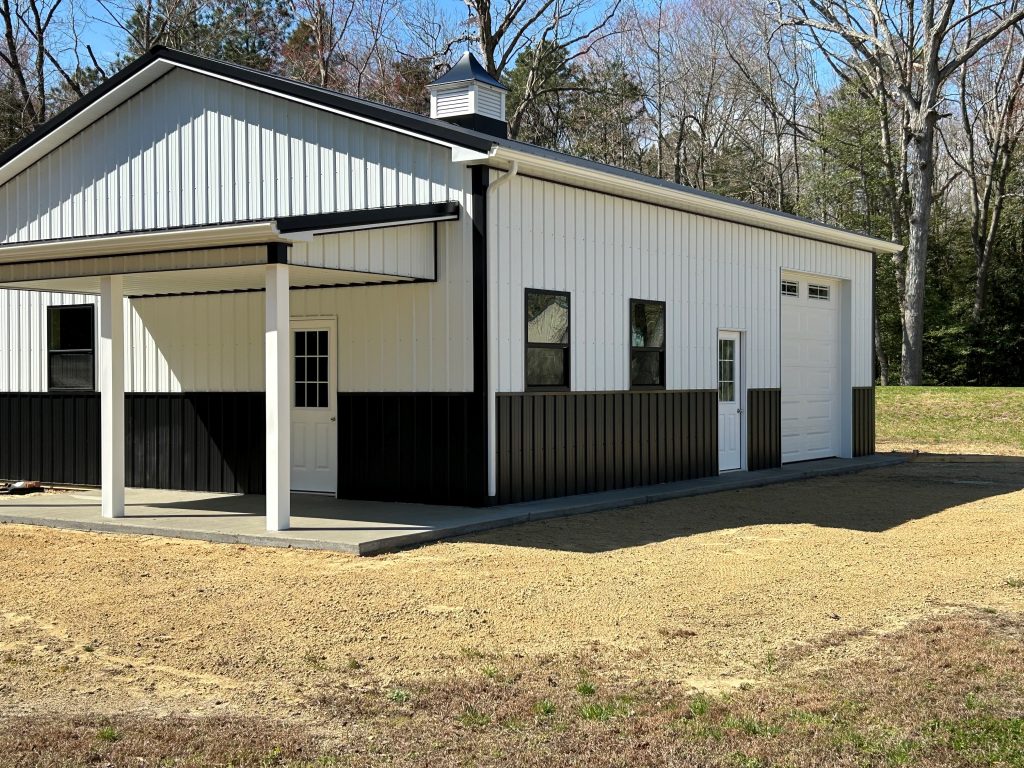

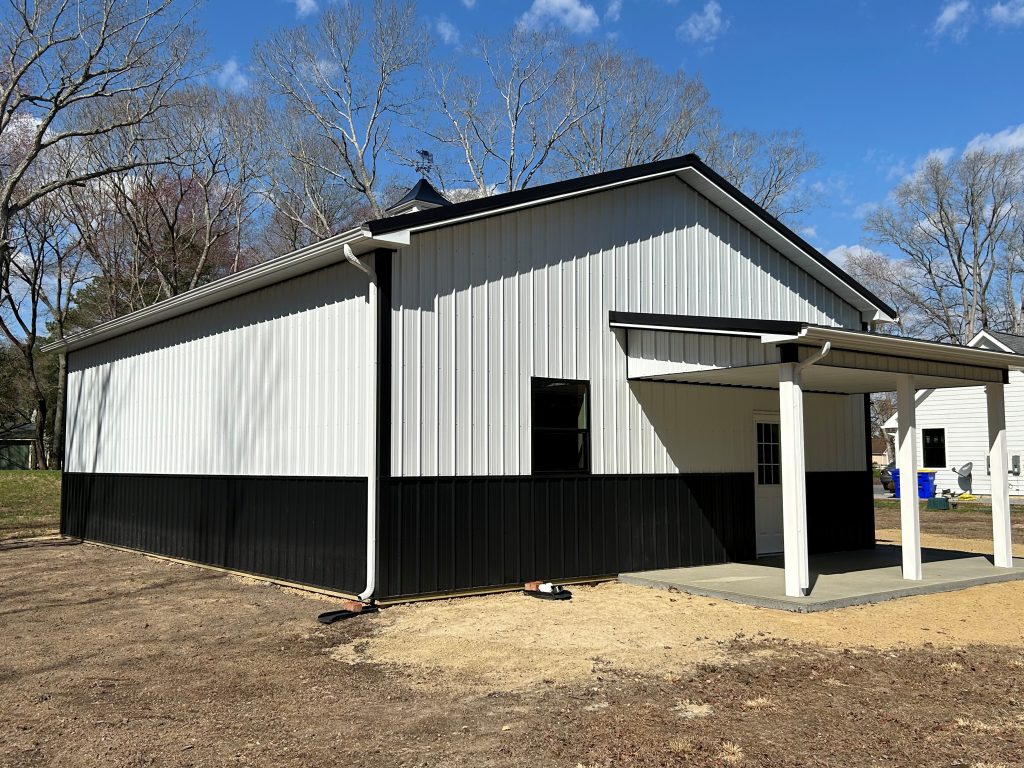

Lean-to #1
8 x 16 Open Gable End Lean-to with 2/12 pitch, steel ceiling
Roofing Type: 27 Gauge Painted Steel with Ridge Vent (Black)
Overhangs: 12″ Boxed Vented on 1-eave & 2-gables (Brilliant White) soffit and fascia
Project# 063FSTW23
